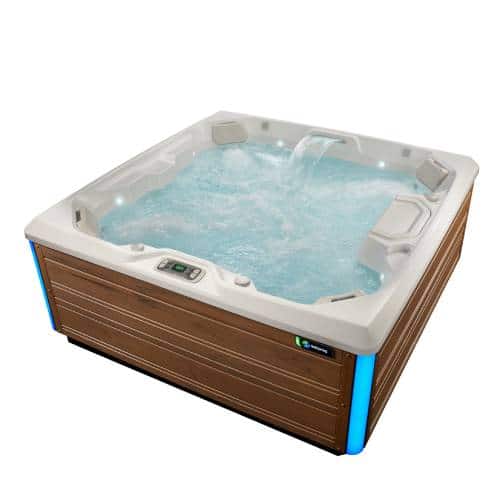

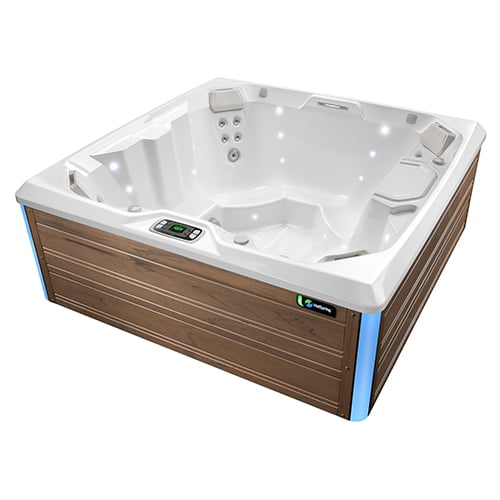

Small stature. Big possibilities.

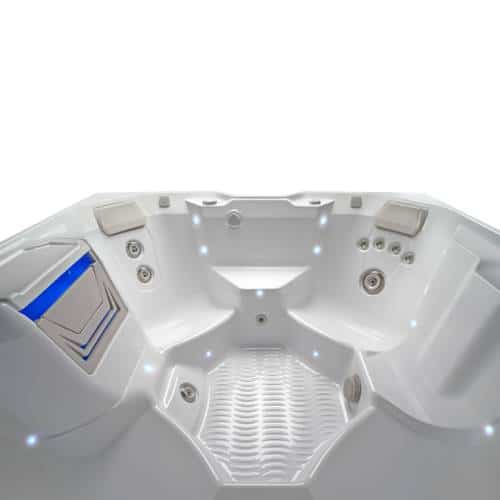

Ideal for tighter spaces, the Beam has a smaller footprint but still provides spacious seating for four people. Each corner seat features a different hydrotherapy option and the large footwell is an added bonus in this spa’s roomy interior.


Beam Specifications

Seating Capacity 4 adults

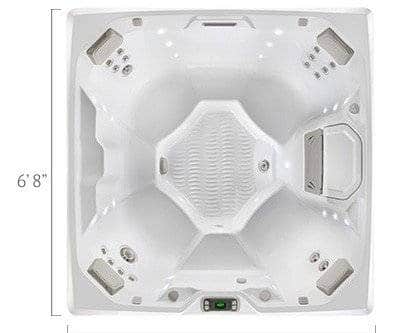

Dimensions 6’ 8” x 6’ 8” x 33”
2.03m x 2.03m x 0.84m
Water Capacity 295 gallons/1,115 liters
Weight 700 lbs./320 kg dry; 3,820 lbs./1,740 kg filled*
Spa Shell Options Alpine White, Ice Gray, Platinum, Tuscan Sun or Desert
Cabinet Options Coastal Gray, Espresso or Sable
Jets – 19 (w/ Brushed Stainless Steel Trim) 1 XL Directional jet
2 Standard Single Rotary jets
2 Standard Directional jets
14 Directional Precision jets
Water Care FreshWater™ Salt System Ready
Water Feature Vidro® backlit ribbon waterfall
Jet Pump Wavemaster® 9000 One-Speed 2.5 HP, continuous duty 5.2 HP, breakdown torque or Wavemaster 7000
1.65 HP, continuous duty
3.5 HP, breakdown torque
Circulation Pump SilentFlo 5000® for quiet, continuous filtration
Effective Filtration Area 100 sq. ft., top-loading filters
Control System IQ 2020® with LCD control panel
230v/50amp, 60Hz Includes G.F.C.I. protected sub-panel
or 115v/20amp, 60Hz
includes G.F.C.I. protected power cord
Lighting System Raio® multi-color interior points of light (30) Exterior multi-color lighting with timer
Heater No-Fault® , 4,000w/230v or 1,500w/115v
Energy Efficiency FiberCor® insulation; Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law
Vinyl Cover 3.5” to 2.5” tapered, 2 lb. density foam core, with hinge seal in Caramel, Chestnut or Slate
Cover Lifter (Optional) CoverCradle® , CoverCradle II, Lift ‘n Glide® or UpRite®
Steps (Optional) Everwood® or Polymer
Entertainment System (Optional) Wireless Entertainment
