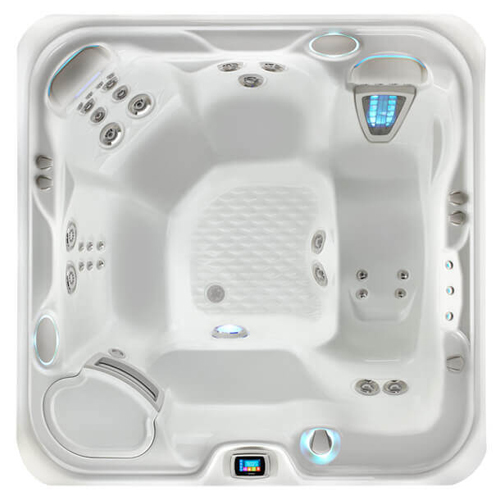

Aria NXT – 5 Adults

Named a Consumers Digest Best Buy, the powerful Aria features advanced technology like the Moto-Massage® DX jets, an insulating hinge seal and Tri-X® filters with a comfortable lounge seat for relaxing hydromassage.


In addition to the unparalleled performance you can count on from the Highlife Collection, the NXT models offer these value-added and innovative upgrades:

Architectural Molded Corners, Beautiful Exterior Lighting, Large On/Ready Indicator Lights, Polymeric Sub-Structure, and Polymeric Base Pan

Seating Capacity

5 Adults


7’3” x 7’3” x 36”

Water Capacity

325 gallons


695 lbs. dry; 4,280 lbs. filled*

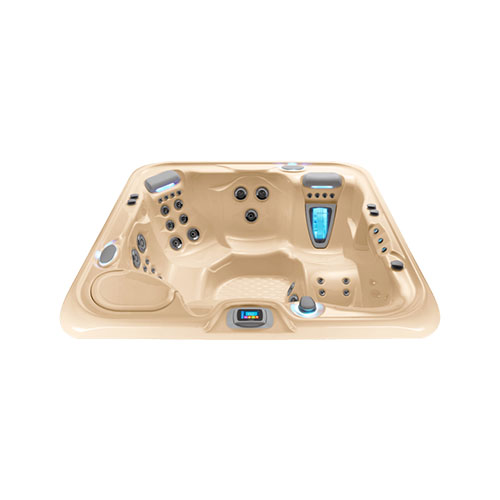

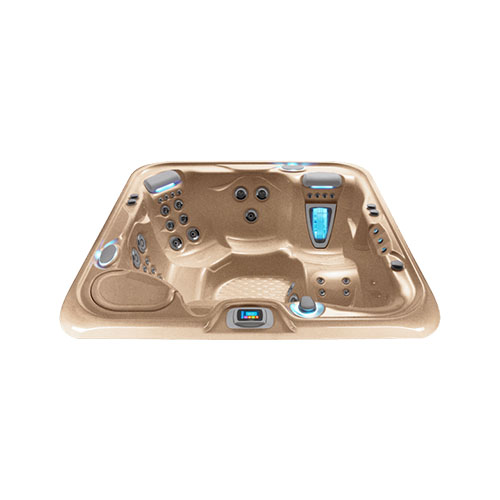

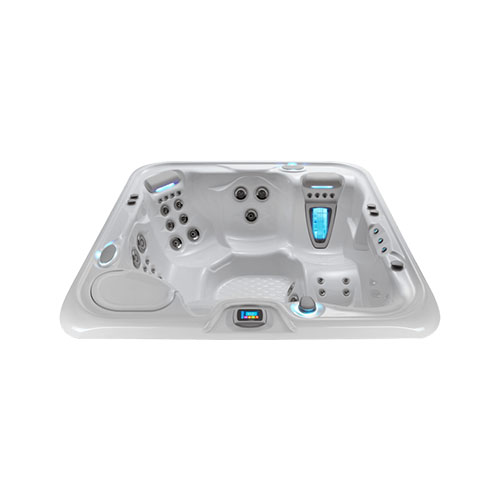

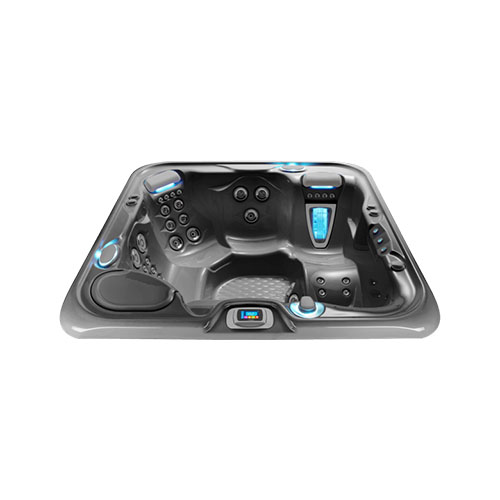

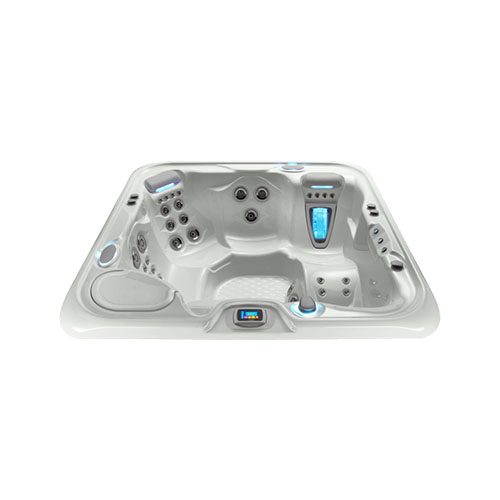

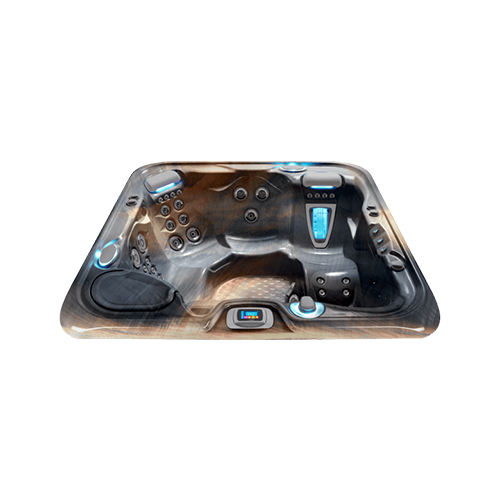

Spa Shell Option

Alpine White, Crème, Ice Gray, Platinum, Tuscan Sun, or Desert**

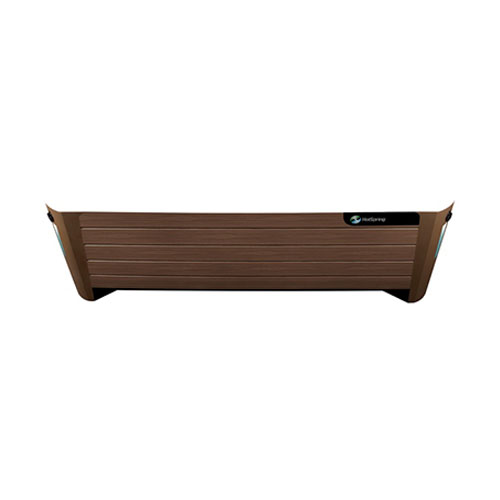

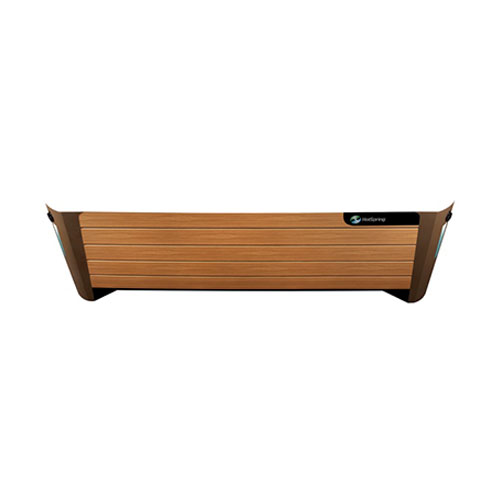

Cabinet Options

Everwood HD: Mocha, Monterey Gray or Teak**

Jets- 35
(w/ stainless steel trim)

1-Moto-Massage DX jet (2)
2-SoothingStream jets
2-JetStream jets
2-Rotary Hydromassage jets
5-Directional Hydromassage jets
4-HydroStream jets
18-Directional Precision jets

Water Features

BellaFontana with 3 illuminated arcs of water

Water Care System (optional)

ACE Salt Water System or EverFresh System

Jet Pump 1

Wavemaster 9000; One-speed, 2.5 HP
Continuous Duty, 5.2 HP Breakdown Torque

Jet Pump 2

Wavemaster 8200; Two-speed, 2.0 HP
Continuous Duty, 4.0 HP Breakdown Torque

Circulation Pump

SilentFlo 5000 for quiet, continuous filtration

Effective Filtration Area

325 sq. ft., top-loading Tri-X filters, 100% no-bypass filtration

Ozone System

FreshWater III Corona Discharge

Control System

IQ 2020 with wireless remote control 230v/50amp, 60Hz, Includes G.F.C.I. protected sub-panel

Lighting System

Luminescence multi-color four zone


No-Fault, 4000w/230v

Energy Efficiency

Certified to the APSP 14 National Standard and
The California Energy Commission (CEC) in accordance with
California law

Vinyl Cover

3.5” to 2.5” tapered, 2 lb. density foam core, with hinge seal in Caramel, Chocolate, Slate or Evergreen

Cover Lifter (Optional)

CoverCradle, CoverCradle II, Lift ‘n Glide or UpRite

Steps (Optional)

Everwood HD, NXT, Polymer

Entertainment System (Optional)

Wireless Sound System

*Includes water and 5 adults weighing 175 lbs. each
**Some color combinations are considered special orders. Ice Gray/Teak, Crème/Monterey Gray, Desert/Monterey
Gray, and Platinum/Teak have special order pricing.
