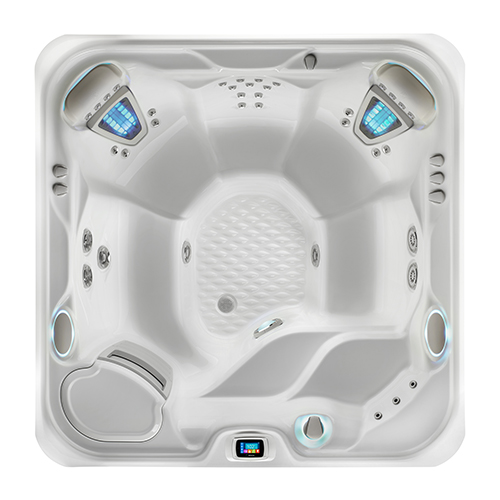

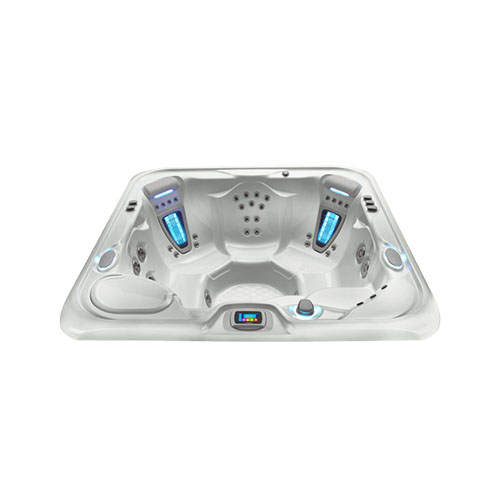

Vanguard NXT – 6 Adults

Vanguard NXT

Seating Capacity

5 Adults


7’3” x 7’3” x 36”

Water Capacity

335 gallons


695 lbs. dry; 4,540 lbs. filled*

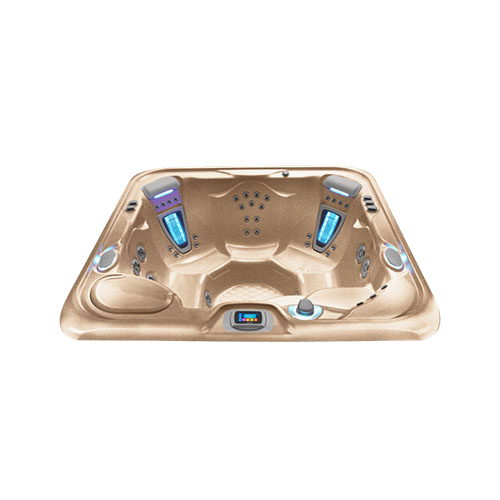

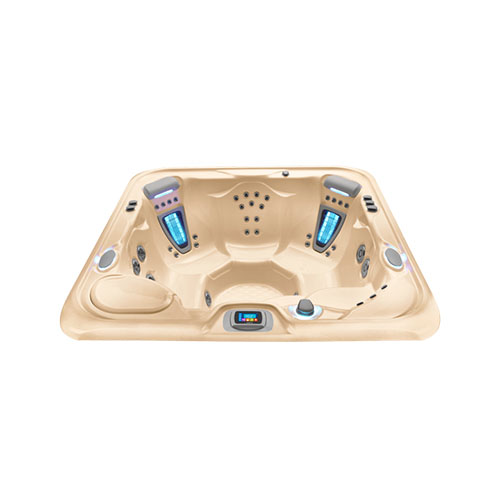

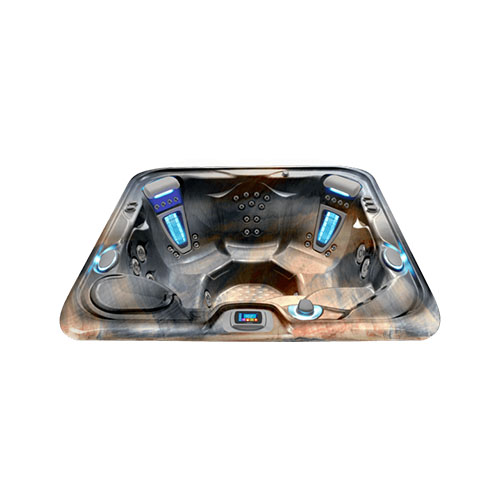

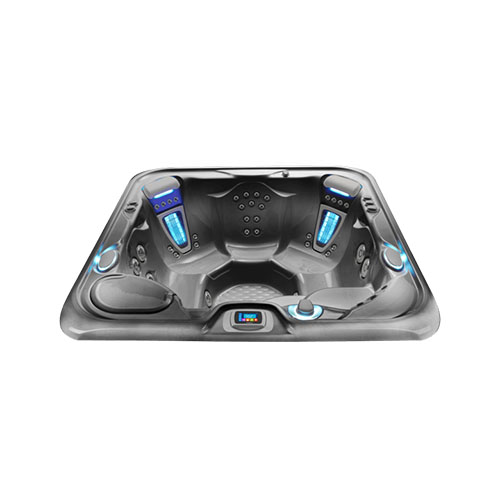

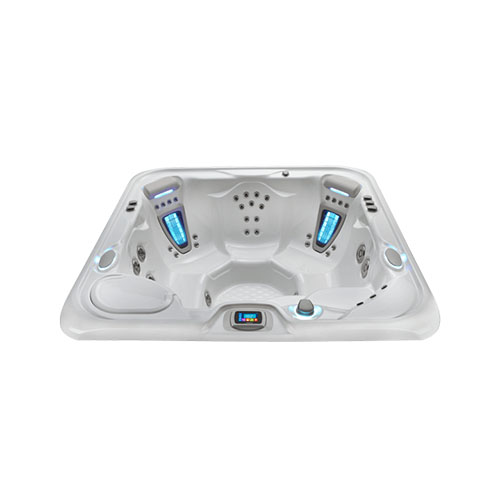

Spa Shell Option

Alpine White, Crème, Ice Gray, Platinum, Tuscan Sun, or Desert**

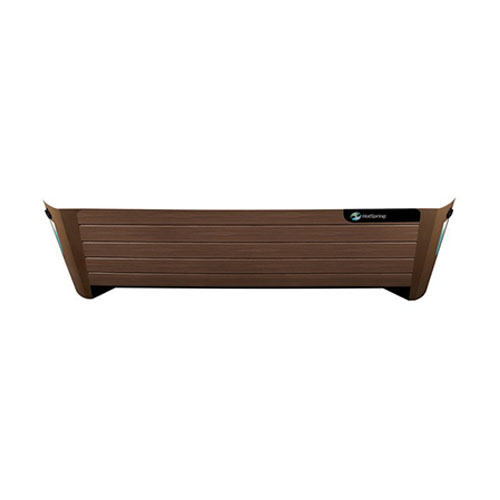

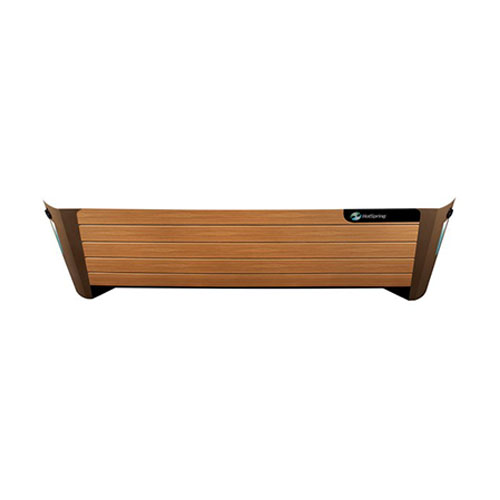

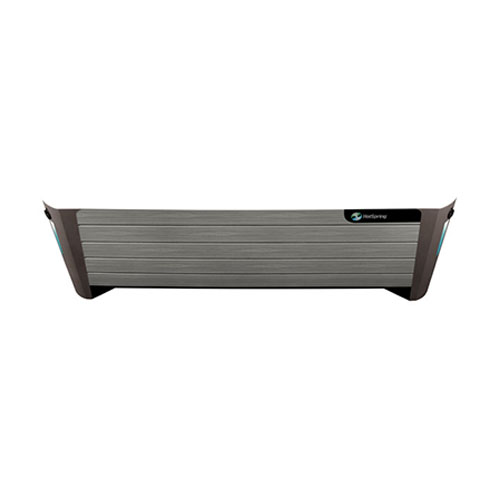

Cabinet Options

Everwood HD: Mocha, Monterey Gray or Teak**

Jets- 35
(w/ stainless steel trim)

2-Moto-Massage DX jet (2)
2-SoothingStream jets
2-JetStream jets
2-Rotary Hydromassage jets
1-Directional Hydromassage jet
27-Directional Precision jets

Water Feature

BellaFontana with 3 illuminated arcs of water

Water Features

ACE Salt Water System
or EverFresh System

Jet Pump 1

Wavemaster 8000; One-speed, 2.0 HP
Continuous Duty, 4.0 HP Breakdown Torque

Jet Pump 2

Wavemaster 9200; Two-speed, 2.5 HP
Continuous Dity, 5.2 HP Breakdown Torque

Circulation Pump

SilentFlo 5000 for quiet, continuous filtration

Effective Filtration Area

325 sq. ft., top loading Tri-X filters, 100% no-bypass filtration

Ozone System

FreshWater III Corona Discharge

Control System

IQ 2020 with wireless remote control 230v/50amp, 60Hz
Includes G.F.C.I. protected sub-panel

Lighting System

Luminescence multi-color four zone


No-Fault, 4000w/230v

Energy Efficiency

Certified to the APSP 14 National Standard and
The California Energy Commission (CEC) in accordance with
California Law

Vinyl Cover

3.5” to 2.5” tapered, 2 lb. density foam core, with hinge seal in Caramel, Chocolate, Slate or Evergreen

Cover Lifter (optional)

CoverCradle, CoverCradle II, Lift ‘n Glide, or UpRite

Steps (optional)

Everwood HD, NXT, polymer

Entertainment System (optional)

Wireless Sound System

*Includes water and 6 adults weighing 175 lbs. each
**Some color combinations are considered special orders. Ice Gray/Teak, Crème/Monterey Gray, Desert/Monterey
Gray, and Platinum/Teak have special order pricing.
